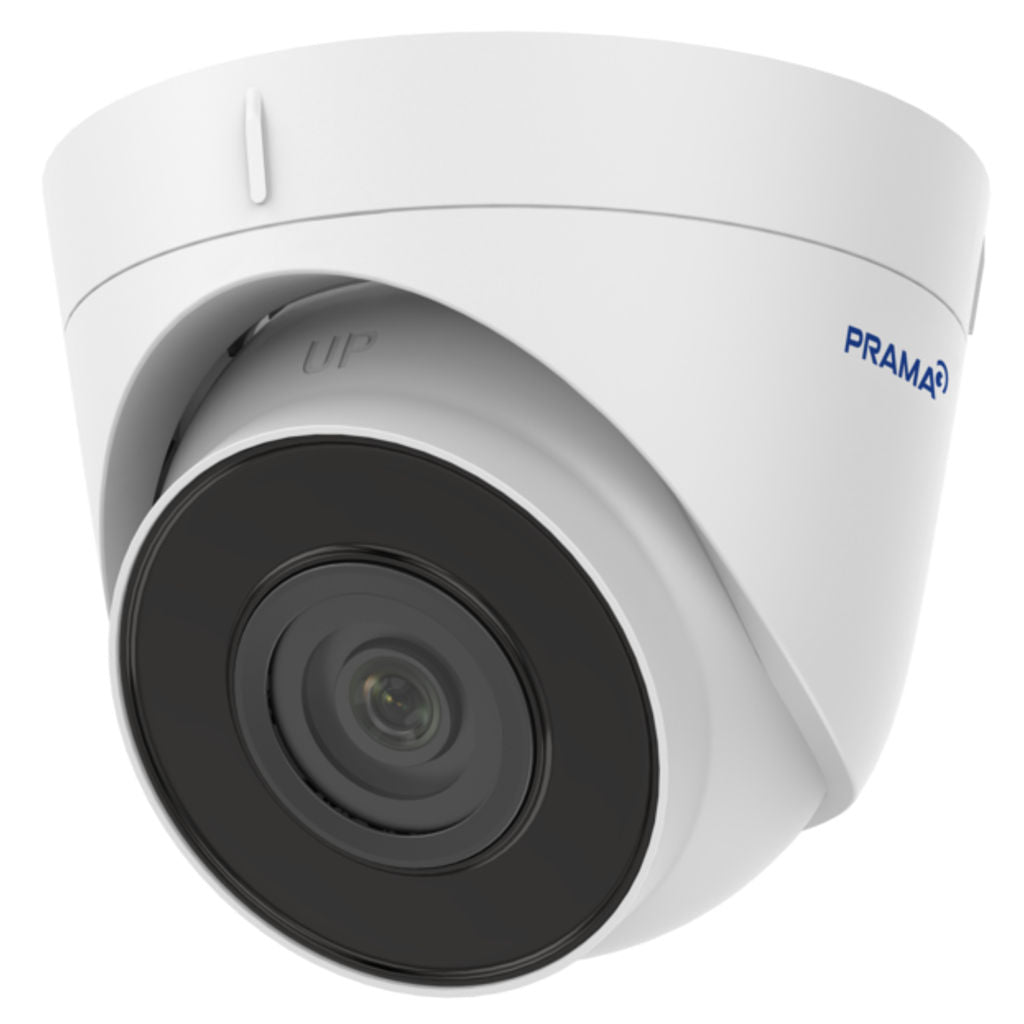

Prama 1.3MP Fixed Turret Network Camera PT-NC113D3-I(DE)
Prama 1.3MP Fixed Turret Network Camera PT-NC113D3-I(DE)
Product Description
-
High quality imaging with 1.3 MP resolution
-
Efficient H.265+ compression technology
-
Clear imaging against strong back light due to DWDR technology
-
Water and dust resistant (IP67)
-
EXIR 2.0: advanced infrared technology with long IR range
Product Specification
| Brand | Prama |
| Product Type | Network Camera |
| Product Model | PT-NC110D3-I (DE) |
| Camera | |
| Image Sensor | 1/2.7 inch Progressive Scan CMOS |
| Minimum Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | Digital WDR |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360° |
| Lens | |
| Focal Length & FOV | 2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° |
| Lens Mount | M12 |
| Focus | Fixed |
| Aperture | F2.0 |
| Illuminator | |
| IR Wavelength | 850 nm |
| IR Range | Up to 30 m |
| Video | |
| Maximum Resolution | 1280 × 960 |
| Main Stream | 50 Hz: 25 fps (1280 × 960 ) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) |
| Video Compression | Main Stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main Stream supports |
| H.265+ | Main Stream supports |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, |
| Simultaneous Live View | Up to 6 channels |
| API | ISAPI |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Client | PRAMA VMS Standard, PRAMA-ONLINE |
| Web Browser | Plug-in requIRed live view: IE 10+ |
| Image | |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, 3D DNR |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception |
| General | |
| Linkage Method | Upload to FTP, notify surveillance center, send email |
| Camera Material | Metal & Plastic |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Web Client Language | English |
| General Function | Anti-flicker, heartbeat, mIRror, password protection, privacy mask, |
| Firmware Version | V5.5.120 |
| Power Consumption and Current | 12 VDC, 0.4 A, Maximum 5 W |
| Power Supply | 12 VDC ± 25% |
| Power Interface | Ø5.5 mm coaxial power plug |
| Protection | IP67 (IEC 60529-2013) |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 86.7 x 81.6 x 226 |
| Unit of Measurement | 1 Piece |
| Weight | 140 g |
| Generic Type | Network Camera |
| Manufacturer Details | Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
| Packer Details | Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
| Country of Origin | India |
