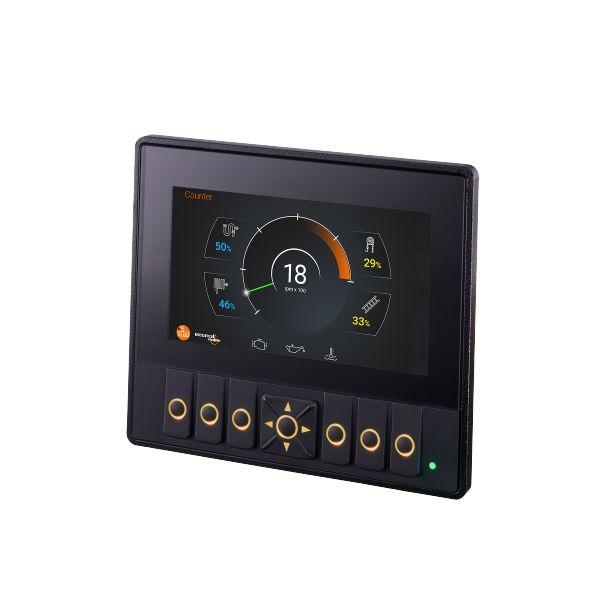

Ifm CR1140 Programmable Graphic Display For Controlling Mobile Machines

Application	for mobile applications; For use in industrial environments; for use in wet environments

Operating voltage [V]	8...32 DC; (to SELV/PELV)
Nominal voltage DC [V]	12 / 24
Current consumption [mA]	< 210; (24 V DC)
Power consumption [W]	5

Number of inputs and outputs	Number of digital inputs: 1

Number of digital inputs	1; (non-configurable service input)

Parameter setting options	CODESYS 3.5; Qt
PLC function to IEC 61131-3	yes
Operating system	Embedded Linux

Communication interface	CAN; Ethernet
Number of CAN interfaces	1
Number of Ethernet interfaces	1

Transmission rate	10 kBit/s... 1 MBit/s
Protocol	CANopen; SAE J1939; free protocol
Profile	CiA DS 301 Version 4.2; CiA DS 401 Version 1.4
Interface	CAN Interface 2.0 A/B ISO 11898
Factory settings	Transmission rate: 250 kBit/s

Transmission standard	10Base-T; 100Base-TX
Transmission rate	10 MBit/s; 100 MBit/s
Protocol	TCP/IP; UDP; Modbus TCP; OPC UA; EtherNet/IP
Note on interfaces	OPC UA PubSub

Ambient temperature [°C]	-30...65
Note on ambient temperature	2000 m: -30...65 °C 3000 m: -30...61 °C 4000 m: -30...60 °C 5000 m: -30...58 °C The mainboard temperature must not exceed 80 °C. for further information please see the operating instructions
Storage temperature [°C]	-30...85
Max. relative air humidity [%]	90; (non condensing)
Max. height above sea level [m]	5000
Protection	IP 65; IP 67
Degree of soiling	2; (before installation and when the device is replaced)
Chemical media	ISO 16750-5 AA, BA, BD, CC, DB, DC, DD, ED only one chemical permitted at a time

EMC	UN/ECE-R10 Noise emission and noise interference: 100 V/m DIN EN 61000-6-2 DIN EN 61000-6-4 DIN EN 13766-1 ISO 10605 ESD noise immunity ISO 11452-1 ISO 7637-2 pulse 1 severity level 4 / function state C (24 V) ISO 7637-2 pulse 2a severity level 4 / function state A (24 V) ISO 7637-2 pulse 2b severity level 4 / function state C (24 V) ISO 7637-2 pulse 3a severity level 4 / function state A (24 V) ISO 7637-2 pulse 3b severity level 4 / function state A (24 V) ISO 16750-2 pulse 4 severity level 4 / function state A (12 V) ISO 16750-2 pulse 4 severity level 4 / function state A (24 V) ISO 16750-2 pulse 5 severity level 3 / function state C (24 V)
Continuous shock resistance	ISO 16750-3 30 g 6 ms / 24000 shocks
Fast temperature changes	EN 60068-2-30 damp heat: cyclical 55 ° C upper temperature limit / 6 cycles EN 60068-2-78 damp heat: constant 40 ° C 93 % rH / test period 21 days
Vibration resistance	ISO 16750-3 Test VII random, mounting place car body EN 60068-2-6 Sinus 10...500 Hz / 0.72 mm / 10 g 10 cycles/axis, sine
Salt spray test	EN 60068-2-52 Salt spray severity level 3 / motor vehicle
MTTF [years]	105
Railway applications	DIN EN 50155 Pkt 12.2 EN 50121-3-2 EN 55016

Weight [g]	491.55
Type of mounting	panel/surf.; installation in panels or panel cutouts; (panel cutout: 114 x 99 mm)
Dimensions [mm]	125.1 x 110 x 41.3
Material	housing: diecast aluminium powder-coated; Display: glass anti-reflective and hardened; rear of the housing: plastics; diaphragm: Gore-Tex
Information on service life	Pushbuttons: 750000 Betätigungen Navigation key with pushbutton: 750000 Betätigungen Display-LED Lebensdauer: > 50000 h

Display	Status LED 1 LED, multi-color freely programmable
Operating elements
